LuBan is next-generation, generative CAD/CAM software that helps designers and makers in rapid production of their creations.
LuBan automatically generates 3D models in various forms, such as lithophane, stack, hash, plate, relief, module, and wireframe.
The generated model can be fabricated by 3D printing, laser cutting, and CNC milling.
LuBan is actively developed by a highly focused software team,
led by Lujie Chen in Singapore and Larry Sass in USA.

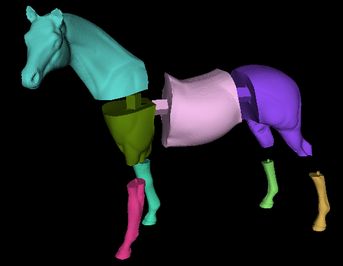

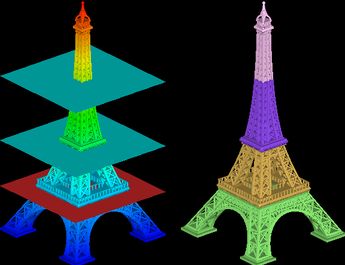

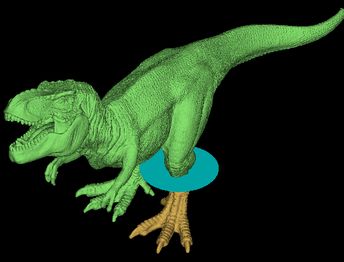

Cutting large models into smaller pieces and generating connectors between the peices for assembly.
An option of a staggered cut pattern is added to “Mesh -> Split”, Method Grid cut.

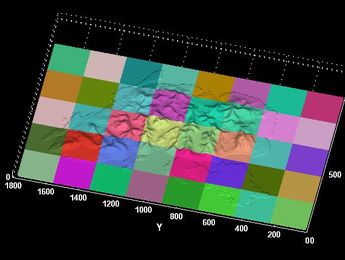

Grid cut split an object into equal-sized blocks.
The function is under “Mesh -> Split”, Method Grid cut.
Adjust each cutting plane under “Mesh -> Split”, Method Grid cut.

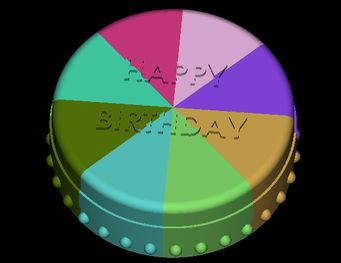

Radially cut a 3D object.
Split a model by a cutting region instead of a basic cutting plane.

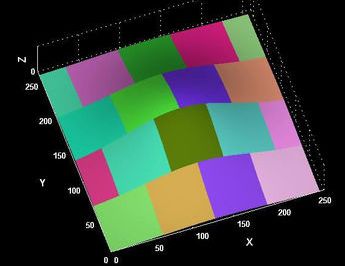

Apply a curved cut to an object.
1. “Mesh -> LuBan”, Method Module.
2. “Mesh -> Split”.

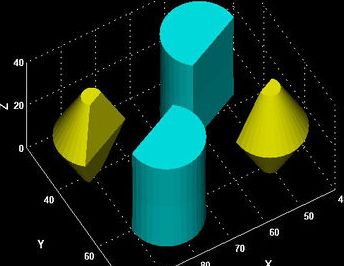

D-shape plug and dowel allows the orientation of two parts to be uniquely determined.
This option is available under “Mesh -> LuBan”, Method Module and “Mesh -> Split”.
Show multiple objects in a window in an exploded view.
“Object -> Explode” and “Object -> Restore”.
Support to a circular printer bed is added to
“Mesh -> LuBan”, Method Module.
Make Cookie Cutters and Wireframe from existing models.
Generate 3D printable cookie cutter from a black and white picture.

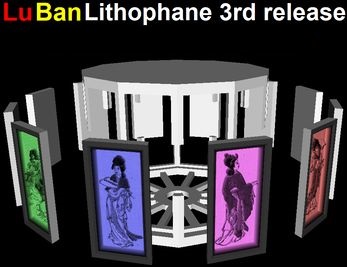

Generate Lithophane from photo and warp it on different geometries
Turn any 2D photo into a 3D printed photo with a frame.

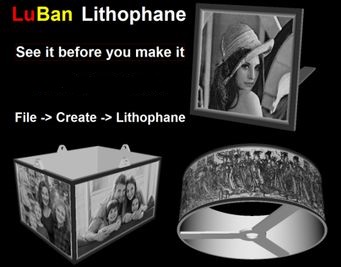

“File -> Create -> Lithophane”
Lamp color and intensity, filament color, one body vs. assembly.

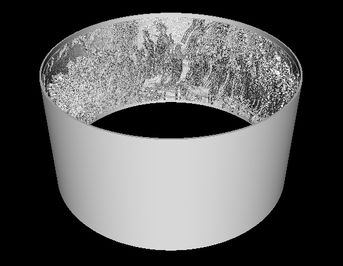

Lithophane on the interior surface.

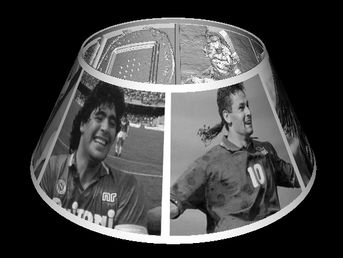

Cone shape lithophane.

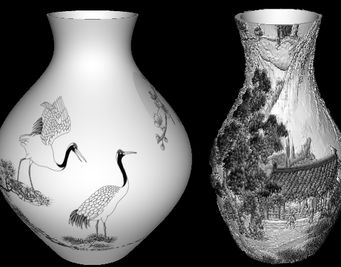

An adjustable vase-like shape is added. Through control points, the shape can take various different forms.
A new shape, spiral, enables the print of very large lithohphane. After printing, the spiral lithophane can be put in hot water and be reshaped to a long, flat lithophane.
Add edge support to flat and arc lithophane to reduce the out-of-plane movement during 3D printing. A tall flat lithophane is particularly sensitive to nozzle movement. With the edge support, a flat lithophane is more stable during printing and better results can be obtained.

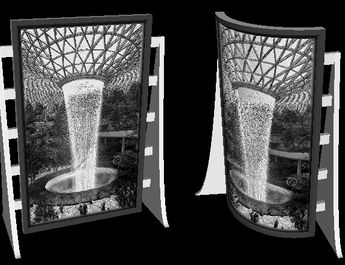

Stretch a photo to cover the whole surface of a cylinder, cone, and vase lithophane.
Generate Special Effects for existing 3D models.

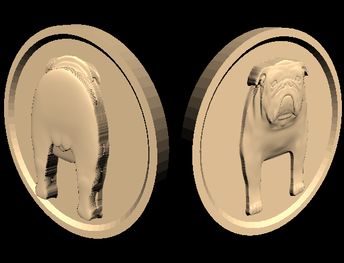

Mesh -> LuBan, Method Relief. An option is added to generate double-sided relief.

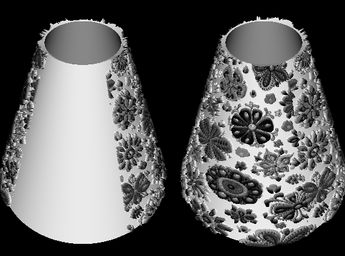

Apply wave propagation to a mesh to create interesting visual effects and to generate wavy surface deformation to the mesh.

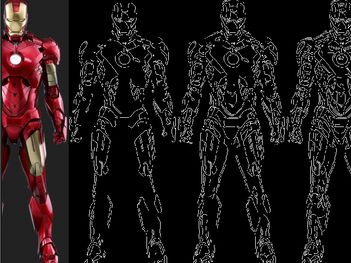

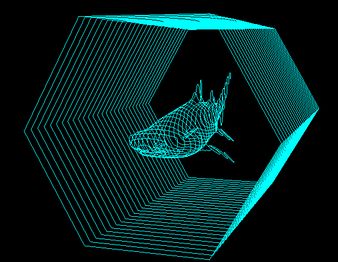

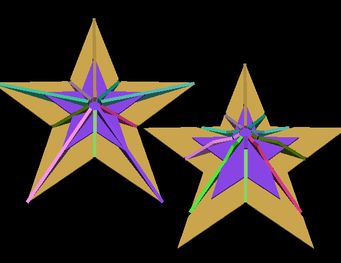

Turn a 3D mesh into a 3D wireframe.
“Mesh -> LuBan”, Method Wireframe.

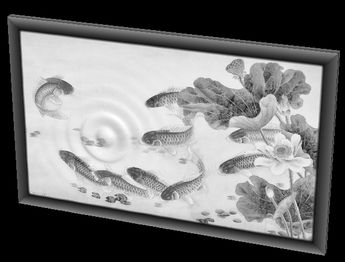

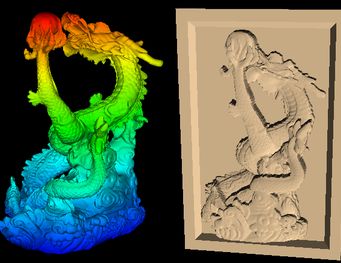

Turn a 3D mesh into a relief that can be fabricated by 3D printing, CNC milling, and laser engraving.
Function under “Mesh -> LuBan”, Method Relief.

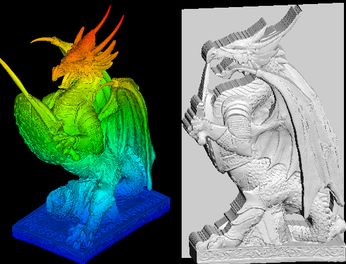

Get the depth map of a 3D mesh using “Mesh -> Depth map”.

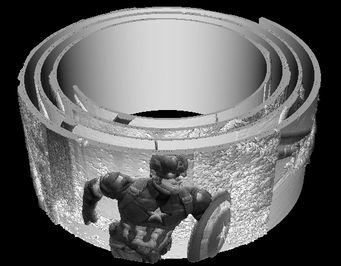

Adjust the radial center of the Radial method.
Special Effects for Laser Cutting.

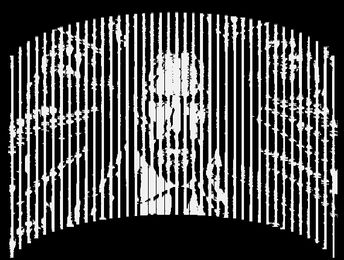

Represent a photo by laser cut or 3D printed pillars.

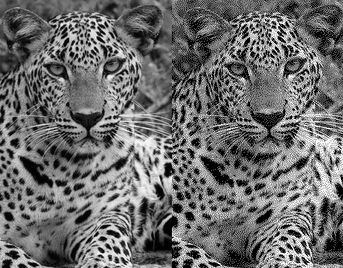

Convert a grayscale image to a halftone line image. Base line intensity, line width, gap between lines, and line angle can be adjusted.
Convert a grayscale image to a halftone image for laser engraving.
Turn a 3D mesh into a set of 2D contours, which can be laser engraved on transparent sheets, giving a 3D perspective effect.
Convert a bitmap to a vector image for the ease of laser cutting. “Tool -> Convert -> Bitmap (binary image) -> Vector”
“Tool -> Convert -> Bitmap (natural image) -> Vector”

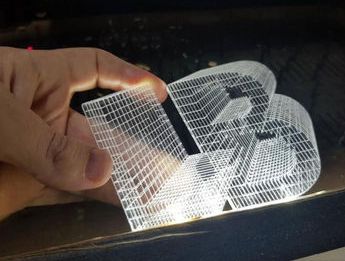

Turn a 3D mesh into a 2D wireframe that can laser cut and engraved.
The function is under “Mesh -> LuBan”, Method Wireframe.

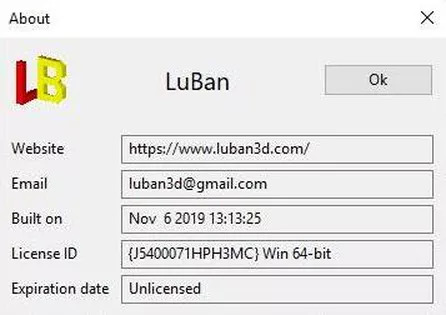

LuBan has a unique license ID for each computer. The ID can be read by running LuBan and go to menu “Help -> About”.
All text in the line of License ID, includes the braces and OS information, is needed to register a license. An unregistered ID shows “Unlicensed”.
LuBan License Type
- Free Trial license: Full access to all LuBan features for 30 days.
- One-year license: Full access for 1 year.
- Permanent license: Full access forever.
- A permanent license does not require internet connection when running LuBan, while a timed license does.
- Within a licensed period, all upgrades are free. A permanent license can get free upgrades forever. To upgrade, just download the latest LuBan.
- Replacing a registered license to run LuBan on a different computer is free.
Documents of LuBan are available at Download LuBan in a shared folder named “Doc”. Begin with the document “LuBan Get started.pdf”.
Simplify3D is slicing software that generates G-code from a mesh model to control a 3D printer to print the model. LuBan is mesh-processing software that generates parts of a model. The parts themselves may be mesh models for 3D printing; they may also be 2D drawings for laser cutting.
Both LuBan and MeshMixer can process triangular mesh models in OBJ, PLY, or STL format. MeshMixer is a manual modelling software tool. LuBan is automatic.
LuBan and Slicer have a few similar methods, such as the stacking and interlocking models. In every method of LuBan, a model can be resized larger than the working dimension of a machine. LuBan ensures that all parts of the model are generated within the dimension. Slicer does not guarantee this.
LuBan has a finger joint and a module method that is not available in Slicer. The finger joint method (Mesh -> LuBan, Method Plate) is useful to make wood joinery. The module method (Mesh -> LuBan, Method Module) is useful to make big 3D printed objects.
